Warehouse Layout Design: Types, Best Practices, and How to Plan Yours

There's more to running a warehouse than piling inventory on shelves. Your warehouse layout decides how fast goods move, how safely your team works, and how much space you actually use.

A good layout gives you clear visibility, a smooth flow of goods, and easy access to equipment. And no one design works for everyone. The right fit depends on your industry, your building's size and shape, your shipping and receiving volume, and your budget.

So, what's the best way to arrange your warehouse? We'll walk you through the main layout types, the factors to weigh, a step-by-step plan, and the mistakes worth dodging. Let's dive in!

Key Takeaways

• The four common warehouse layouts are U-shaped, I-shaped, L-shaped, and flow-through (cross-dock).
• Budget, space, equipment, staffing, safety, throughput, and your inventory profile should all shape your design.
• Keep fast-moving products close to packing and shipping to cut picker travel time.
• Test your layout with the people who work in it, then adjust based on their feedback.
• A warehouse management system keeps your layout working day to day with bin locations and guided picking.

What Is a Warehouse Layout?

A warehouse layout is the plan for your building's physical structure and everything inside it. It sets where each activity happens and how goods and people move between those spaces. A good layout gives workers room to do their best work, leading to a smoother inventory flow with less wasted time.

Most warehouse layouts include these core zones:

• Receiving, where inbound goods are unloaded, checked, and logged.
• Storage, where products sit on racks, shelves, or bins until they're needed.
• Picking, where staff pull the items each order needs.
• Packing, where orders are boxed, labeled, and checked.
• Shipping, where packed orders are staged and loaded for carriers.
• Office and staging, where admin work happens and goods wait between steps.

What to Consider Before You Design Your Warehouse Layout

Several factors shape the right warehouse design and workflow. You'll want to weigh all of them before you commit to a plan for your team.

Budget

Building a warehouse from scratch to custom specs is expensive and slow. Hiring a warehouse design expert would be ideal, but most companies need to work within a tighter budget.

Run a cost-benefit analysis to see which structures and equipment fit your budget best. Don't forget existing buildings, either. A warehouse already on the market might suit your needs, and many leased spaces come with equipment like shelving.

Warehouse Space Needed

How you divide your space determines your warehouse's capacity to store goods. For example, if you need office areas and break rooms, you'll have less room to store and prepare inventory.

To get more storage out of the same footprint, use your vertical space by stacking products. Grouping and stacking similar products together also makes sorting quicker later.

Equipment Needed

To run at full capacity, you'll need equipment like shelving, conveyors, forklifts, lifting and packing tools, pallet racks, and safety gear. Forklifts are used across many industries to move materials, and OSHA lists them among the key safety hazards in warehouses. Factor in their cost and the space they need to operate as you design.

That space includes aisle width. Your aisles need enough room for forklifts to turn and pass safely, so check your equipment's requirements before you fix rack positions.

With equipment moving around, you'll also need barriers to protect your inventory and workers. Barrier rails work great when combined with mirrors and bollards. Once you've mapped your equipment needs, you can pick the best-suited layout and go from there.

Staffing Requirements

Understanding your staffing requirements helps you estimate how many people you'll need and when their shifts should run.

Make sure your layout doesn't slow your team down. Plan with the future in mind, too. Leave enough room so you can comfortably add new employees, products, and materials down the line.

Safety Regulations

Your team's safety comes first. As you design your warehouse layout, make sure you comply with the safety guidelines set by your local authorities and government.

In the U.S., OSHA's warehousing resources are a solid starting point, covering common hazards such as forklift use and improper stacking. Following the rules helps prevent both employee injuries and legal action.

Product Flow and Throughput

Think about how many orders, pallets, and cartons move through your building on a typical day and on your busiest day. Your layout needs to handle the peaks without turning your docks into a traffic jam.

Map the path a product takes from the moment it arrives until it ships. Every extra turn, backtrack, or handoff adds time, so aim for the simplest route your building allows.

Inventory Profile

Your products shape your layout as much as your building does. Look at your SKU count, product sizes and weights, and how fast each item sells.

A business with lots of small, fast-moving items needs very different storage from one shipping bulky pallets. Industries with many size and color variants have their own challenges, as our guide to apparel warehousing explains.

4 Common Types of Warehouse Layouts

Warehouse layouts are commonly grouped into four designs: U-shaped, I-shaped, L-shaped, and flow-through (cross-dock). Each has its upsides and trade-offs, so let's look at them in detail to help you find the best fit.

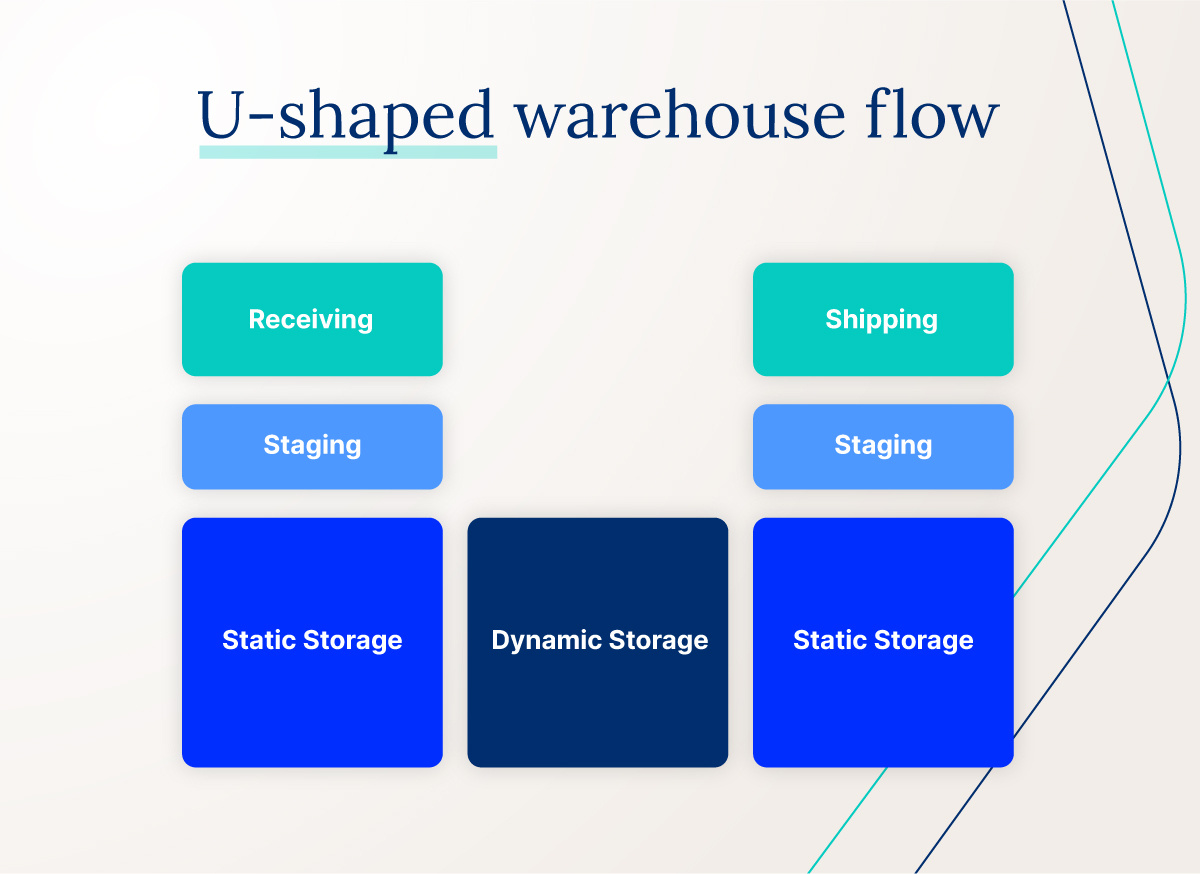

U-Shaped Warehouse Layout

The U-shaped layout is often described as the most common layout, largely because it's simple to set up. Receiving and shipping docks sit on the same side of the building, one at each end of the "U." Storage fills the bend of the "U" in the middle.

Once goods arrive, they go to a staging or reception area to be sorted. Then they move to the right storage location. Storage locations fall into two categories:

• Static storage holds slow-selling products that are likely to sit on shelves for a while.
• Dynamic storage holds products with higher demand and turnover.

The "U" shape keeps inventory moving in one direction around the building. Goods travel in one end, around the bend, and out the other end.

Because shipping and receiving share one side of the building, staff can move products between them quickly. You may also be able to share loading and unloading gear between the two docks.

The trade-off? With inbound and outbound trucks on the same side, your yard and docks can get crowded. Scheduling deliveries and pickups at different times helps keep congestion in check.

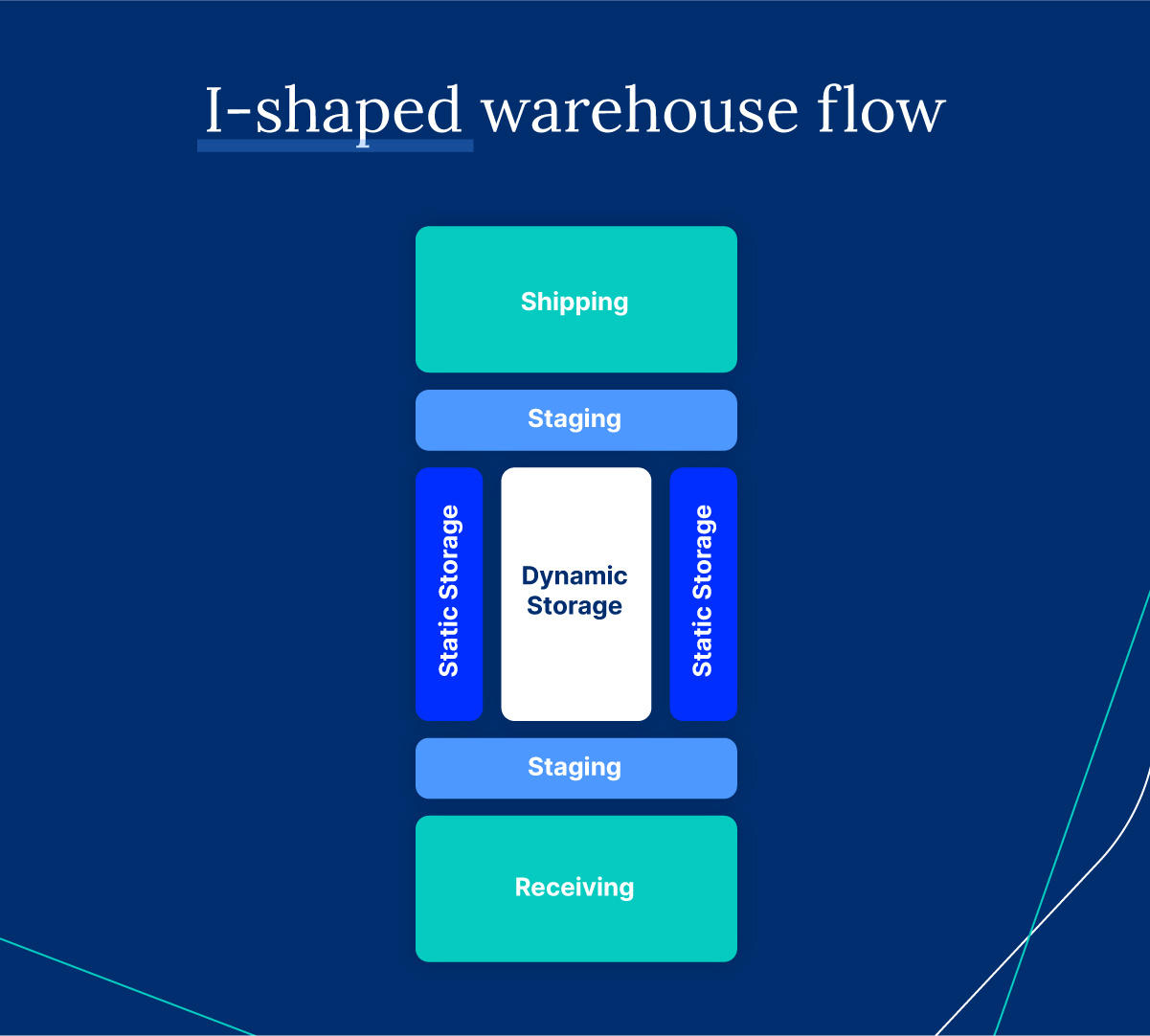

I-Shaped Warehouse Layout

The I-shaped layout often suits high-volume, high-throughput operations. It gives them a clear "in and out" view of product flow.

In this layout, receiving and unloading sit at one end of the warehouse, storage is in the middle, and shipping is at the opposite end. Goods move in a straight line from receipt to shipment.

From a bird's eye view, the flow looks a lot like an assembly line. That helps minimize bottlenecks and cuts back-and-forth movement.

The biggest drawbacks? You'll need two sets of loading and unloading equipment, and products must travel the full length of the building. Since products are accessed on both sides of the "I," you may also need more room for equipment like forklifts.

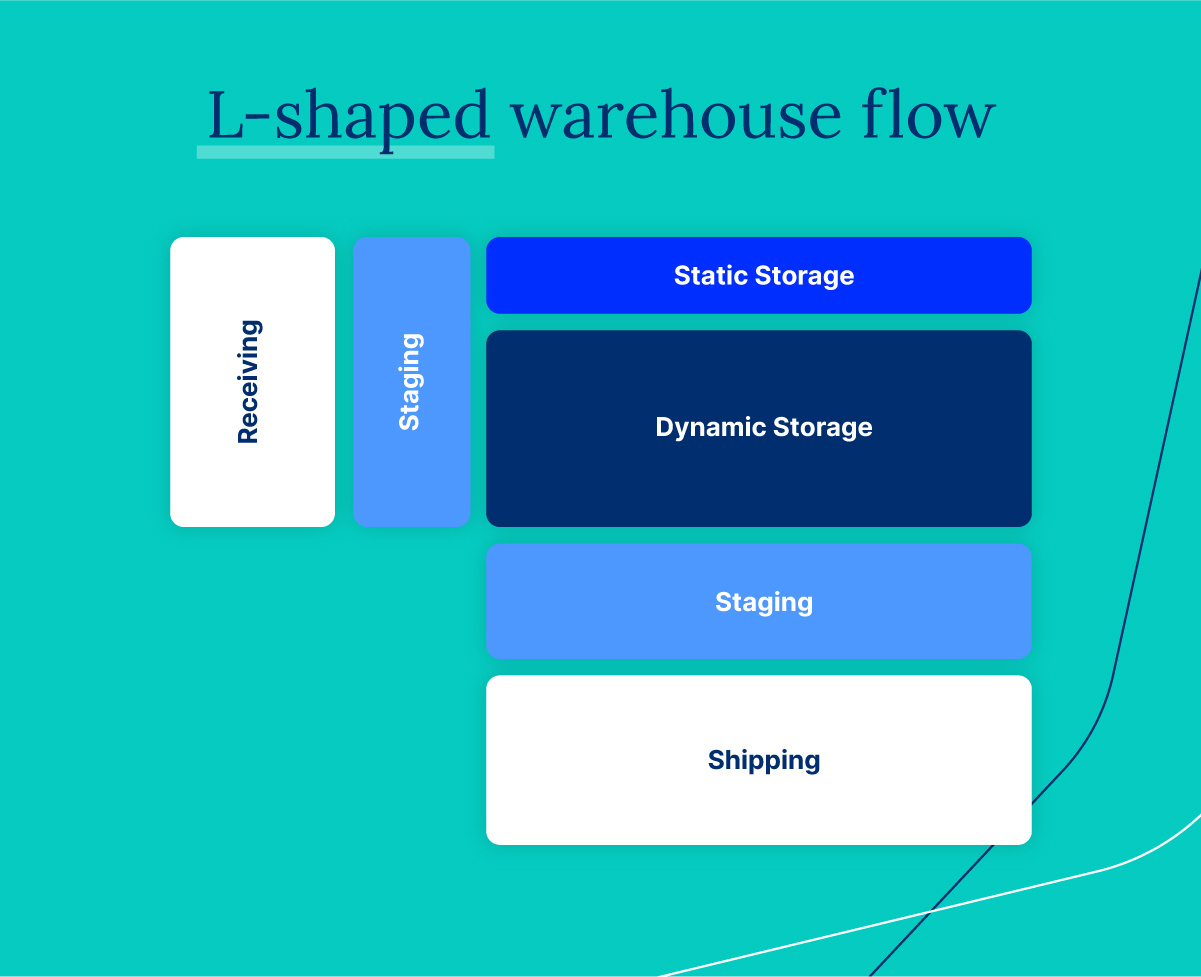

L-Shaped Warehouse Layout

In an "L" layout, receiving and unloading sit on one side of the warehouse. Shipping and picking sit on an adjacent side, forming a right angle. The remaining space is used for storage.

L-shaped layouts are often used to fit L-shaped buildings, but the shape has other perks. Like the I-shape, it reduces back-and-forth movement. It also puts receiving and shipping on different sides of the building, which helps prevent traffic congestion.

The downside? An L-shape needs plenty of space to run smoothly, and you'll still need two sets of loading and unloading equipment.

Flow-Through (Cross-Dock) Warehouse Layout

A flow-through layout, often called cross-docking, moves goods straight from receiving to shipping with little or no time in storage. Inbound docks sit on one side and outbound docks on the opposite side, with a sorting area between them.

This layout shines for distributors and retailers that break down inbound loads and send them right back out to stores or customers. It keeps storage costs low and gets products moving fast.

The catch is timing. Cross-docking only works when inbound and outbound shipments are tightly coordinated, so it depends on accurate data and dependable suppliers.

Comparing the Four Warehouse Layouts

How to Design a Warehouse Layout in 7 Steps

Planning a warehouse from scratch or reworking the one you have? Follow these steps in order, and you'll avoid most expensive do-overs.

1. Define your goals and throughput. Decide what success looks like and how much volume your building must handle on its busiest days.
2. Audit your inventory. Sort products by how fast they sell (often called ABC analysis), plus size, weight, and handling needs.
3. Measure and map your space. Record accurate dimensions, including ceiling height, doors, columns, and dock positions.
4. Choose your flow. Pick the U, I, L, or flow-through layout that best fits your building and volume.
5. Plan storage and aisles. Match rack and shelving types to your products, and size aisles for your equipment.
6. Place picking and packing zones. Put fast movers and packing stations close to shipping to shorten every trip.
7. Test and iterate. Walk the layout with your team, run test orders, and adjust before you lock anything in.

Your demand data matters a lot in steps one and two. Solid inventory forecasting tells you how much space each product needs and where it should live.

Warehouse Layout Best Practices

Whichever layout you choose, you'll need to fine-tune it to keep operations efficient. Here are some tips to make the most of your warehousing strategy.

Warehouse Mapping

When you finalize your warehouse's schematics, get the most accurate measurements possible. Label each area of the facility by its function, too.

It pays to be thorough. Modern Materials Handling's 2025 Warehouse/DC Operations Survey found 39% of respondents run at 85% space utilization or higher during peak, and 20% of those report 95% or higher. That's why every square foot of your layout counts.

Map each workflow from entry to exit so you can see how every function connects. From there, you can define your best work processes and train your team correctly.

Use Vertical Space and the Right Storage

Floor space is precious, so build up where your ceiling and equipment allow. Tall pallet racks, mezzanines, and multi-level shelving all add capacity without adding square footage.

Match storage to the product. Pallet racks suit bulk goods, shelving and bins suit small items, and flow racks suit fast movers that need regular restocking.

Slot Products by Velocity

Slotting means deciding exactly where each product lives. Put your best sellers in the easiest-to-reach spots, closest to packing and shipping. Slower sellers can live farther away or higher up.

Revisit your slotting as demand shifts with the seasons. Clean SKU data and strong inventory control make it much easier to spot which products deserve prime real estate.

Optimizing Picking Processes

When you plan your picking and packing workflows well, the right products reach the right customers. Here are the main picking methods to consider:

• Batch picking groups similar orders and picks them at once. It's faster than single-order picking for orders sharing the same SKUs.
• Zone picking assigns pickers to specific zones. Orders needing items from other zones often travel between them on a conveyor.
• Wave picking combines batch and zone picking for high-volume warehouses with many SKUs. Pickers stay in their zone and pick multiple orders at once.
• Discrete picking suits small businesses with fewer SKUs. One picker gathers every item for one order, which takes more time per order.

Choose the picking strategy that best suits your business and your warehouse. Whatever you pick, keep picking accuracy high to reduce returns.

Ideally, keep picking areas close to storage areas to cut the time spent gathering items. You can also install conveyors to speed up the picking process.

Improving Warehouse Accessibility

Keep tools and equipment in spots your team can reach easily. Leave enough room for equipment and staff to move freely along clearly marked paths. That speeds up fulfillment and gets orders to customers faster.

Streamlining the Shipping Process

The shipping area is where final packing and prep happen. Keep it separate from other spaces to avoid mix-ups, and lay it out so staff never have to backtrack.

Keep best-selling products near shipping and slower sellers farther away. This cuts picker travel time and is easiest to pull off in L- and U-shaped layouts.

Testing and Collecting Feedback

Once your layout and flow are final, run tests to confirm everything moves smoothly. Test equipment like forklifts and conveyors, too.

Let the people who'll use the equipment try it out, and take their feedback seriously. Your pickers are on the move all day, so work with them to fine-tune routes for faster fulfillment and less confusion.

Use that feedback and your test results to settle on the best possible configuration and processes.

Common Warehouse Layout Mistakes to Avoid

Even a smart plan can trip over a few classic errors. Watch out for these:

• Designing only for today's volume, with no room left to grow.
• Making aisles too narrow for forklifts and other equipment to work safely.
• Storing slow sellers in prime spots near packing and shipping.
• Ignoring dock traffic, so inbound and outbound trucks compete for space.
• Skipping the test run and the team feedback that comes with it.

Peak season tends to expose every one of these at once. Our peak season playbook can help you get ahead of the rush.

How to Measure Whether Your Layout Is Working

A layout that looks great on paper still has to prove itself on the floor. Track these key performance indicators (KPIs) before and after any change:

• Pick rate, or how many lines or orders your team picks in an hour.
• Order accuracy, or the share of orders shipped with the right items and quantities.
• Dock-to-stock time, or how long goods take to go from arrival to a pickable location.
• Space utilization, or how much of your usable storage space is actually in use.
• Travel time, or how long pickers spend walking between locations.

If pick rates stall or travel time creeps up, your slotting or flow probably needs a tune-up.

Keep Your Layout Working With the Right Software

Once you've settled your warehouse layout and flow, it's time to choose your warehouse management system. You'd be surprised how much smoother daily operations and order fulfillment get with the right tools.

New to the topic? Our guide to what a warehouse management system does covers the basics.

You won't be alone in investing here. In Zebra's warehouse vision study, 77% of decision-makers said AI applications would impact their ability to forecast needs, streamline stock levels, and maximize space. G2 rounds up more warehouse automation stats.

Cin7 is an inventory management system (IMS) with built-in warehouse management that keeps your layout working as planned. Bin locations show your team exactly where every product lives. Wave picking is built in too, and Cin7 says its guided walking paths can cut picking times by up to 40%.

Running more than one site? Cin7 helps you manage multiple warehouses from a single view, with stock levels in sync across every location. And if you're switching systems, our tips on WMS implementation will help the rollout go smoothly.

Take Fun in Motion Toys, a company that sells unique movement toys. The team uses Cin7's forecasting report to anticipate demand and avoid overstocking or stockouts.

Fun in Motion Toys also relies on Cin7's warehouse management to streamline receiving, storing, picking, packing, and shipping. The result? Operations stay efficient even during peak seasons, when every toy is on the move!

Want to see how Cin7 can help your warehouse layout pull its weight? Talk to the Cin7 experts about your setup.

Frequently Asked Questions

What Is the Most Common Warehouse Layout?

The U-shaped layout is often described as the most common layout, largely because it's simple to set up.

In a U-shape, receiving and shipping sit on the same side of the building, one at each end of the "U," with storage in the middle. Goods flow in one direction around the building.

What Is the Best Warehouse Shape?

The best warehouse design depends on your business. Budget, inventory size and type, order volume, safety requirements, and your building's space all play a part.

U-shaped warehouses are solid all-rounders. I-shapes are great for high-volume orders or conveyor systems.

L-shapes reduce back-and-forth movement, which helps with large products and traffic control. Flow-through layouts suit distributors that move goods out with little or no storage time.

What Are the Four Types of Warehouse Layout?

The four common types are U-shaped, I-shaped, L-shaped, and flow-through (cross-dock). They differ mainly in where receiving and shipping sit and how goods travel between them.

What Is the 5S Rule in Warehousing?

5S is a workplace organization method with five steps: Sort, Set in order, Shine, Standardize, and Sustain. You remove what you don't need, give everything a home, keep spaces clean, document the routine, and make it a habit. In a warehouse, 5S keeps aisles clear and makes items faster to find.

How Can You Optimize an Existing Warehouse Layout?

Start by re-slotting products so fast movers sit closest to packing and shipping. Then add vertical storage, clear blocked aisles, and update your bin locations. Track your KPIs before and after so you know each change actually helped.

What KPIs Show a Warehouse Layout Is Working?

The most useful KPIs are pick rate, order accuracy, dock-to-stock time, space utilization, and picker travel time. When these improve together, your layout is doing its job.

What Is the Best Warehouse Layout for a Small Business?

For most small businesses, a U-shaped layout is the best place to start. It keeps receiving and shipping on the same side of the building, so it's simple to set up and easy to run with a lean team. Pair it with discrete picking and keep your fast movers near shipping, and you're off to a strong start.

What Makes a Good Warehouse Layout?

A good warehouse layout keeps goods moving smoothly through receiving, storage, picking, packing, and shipping without backtracking. It puts best sellers closest to shipping, uses vertical space well, and leaves aisles wide enough for your equipment. It also leaves room to grow, so you won't have to start over when volume picks up.

How Do You Prevent Picking Errors in a Warehouse?

Clear bin locations and barcode scanning are your best defense, since pickers confirm every item before it leaves the shelf. Guided picking paths help too, because they show your team exactly where to go next. Cin7's warehouse management tools build scanning and guided picking right into your daily workflow.

How Do You Know When It's Time to Redesign Your Warehouse Layout?

It's time to rethink your layout when pick rates stall, travel time creeps up, or order accuracy starts to slip. Crowded aisles, trucks competing for dock space, and stock piling up in temporary spots are other warning signs. If re-slotting by velocity and small tweaks don't fix things, a bigger redesign is probably due.

What's the Difference Between Warehouse Layout and Warehouse Design?

Warehouse layout is your floor plan, showing where each area sits and how goods flow between them. Warehouse design is the bigger picture, covering the layout plus your equipment, storage systems, staffing, safety, and processes. Think of layout as the map and design as the whole road trip!
